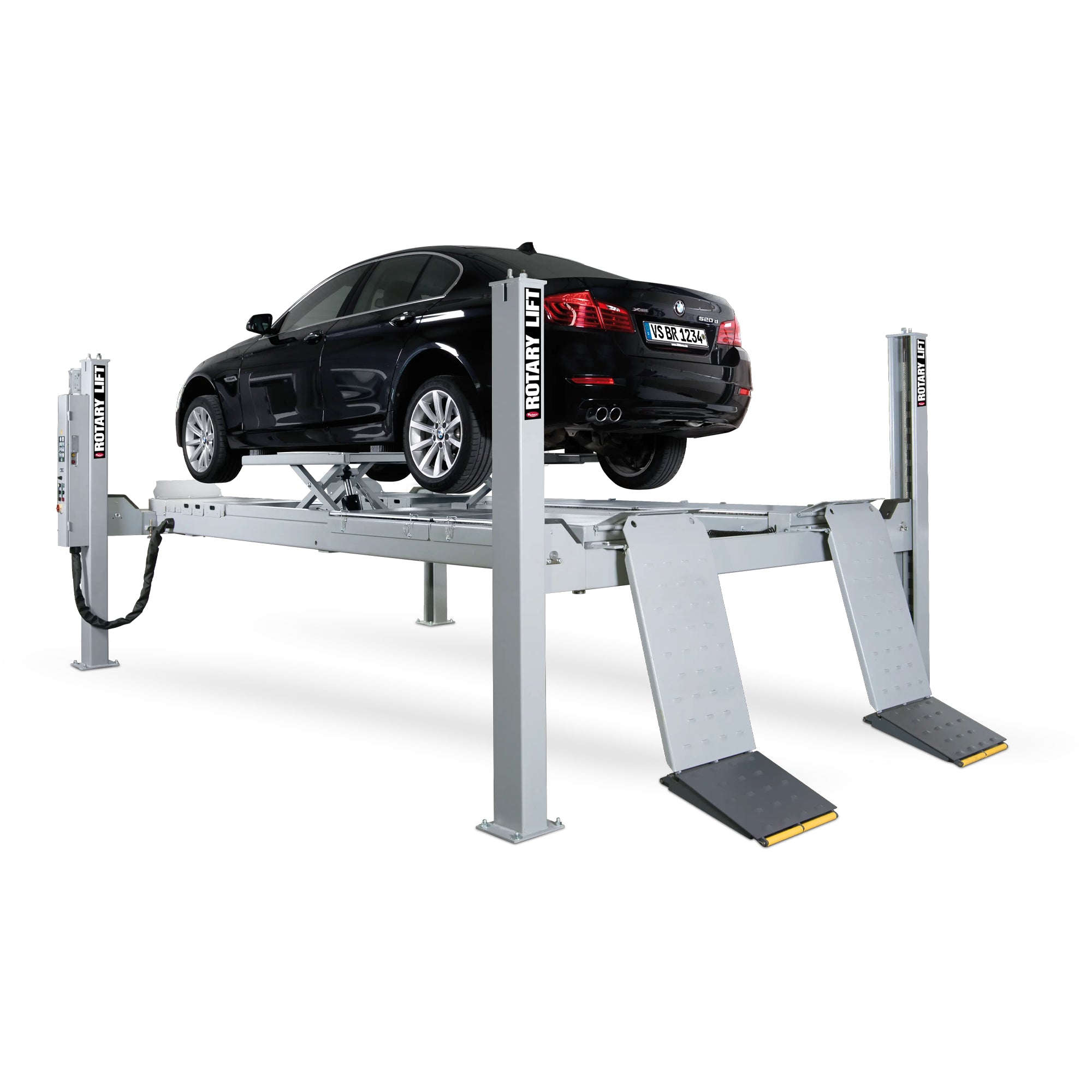

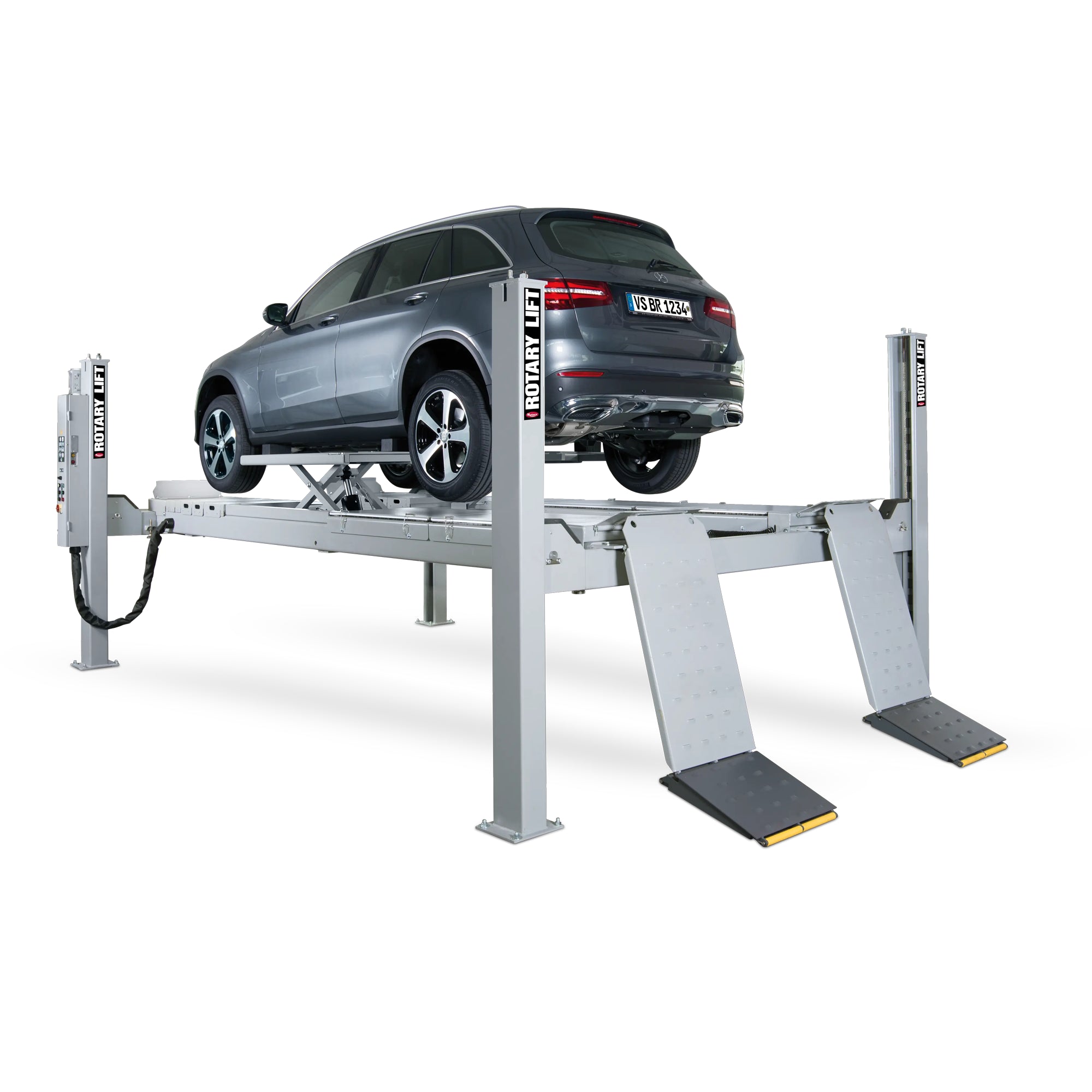

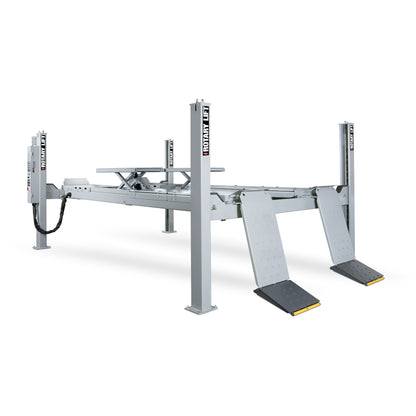

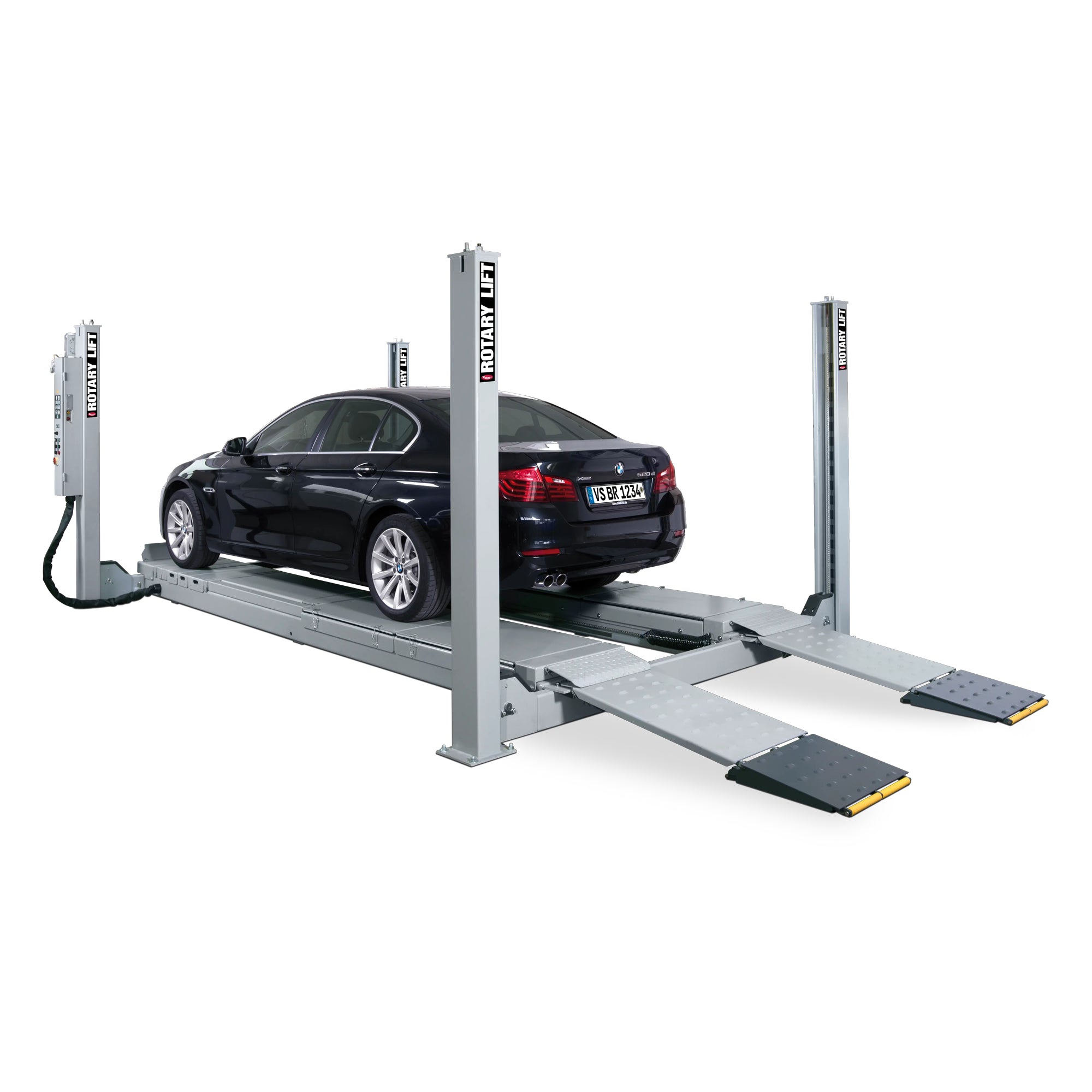

Rotary SM55-51 5500kg Wheel Alignment 4 Post Lift
Product details
Rotary SM55-51LT wheels free wheel alignment 4 post lift(s):
- 5500kg lifting capacity.
- Upgrade LT model - Inner platform wheels free scissor lift.
- Premium model-inc zinc primer under powder coating.
- Premium model-stainless steel platform recess bases.
- Premium model-nylon guide protected infill plates.
- Wheel alignment rear locking slip plates.
- Does not include front turn plates.
- 20,000+ cycle tested.
- Electro-hydraulic operation.
- Air operated safety locking mechanisms.
- Automatic steel cable failure protection.
- Fast lifting time of 45 seconds.
- Platform length 5100mm.
- Platform width 650mm.
- Maximum platform track width 2200mm (outside to outside)
- Platform height 250mm (min)
- Run on ramps 1430mm long (500mm extension sections available at extra cost)
- Drive through clearance 2986mm (between posts)
- Lifting height 2040mm.
- Supplied with fully comprehensive 3 year manufacturer backed warranty.
