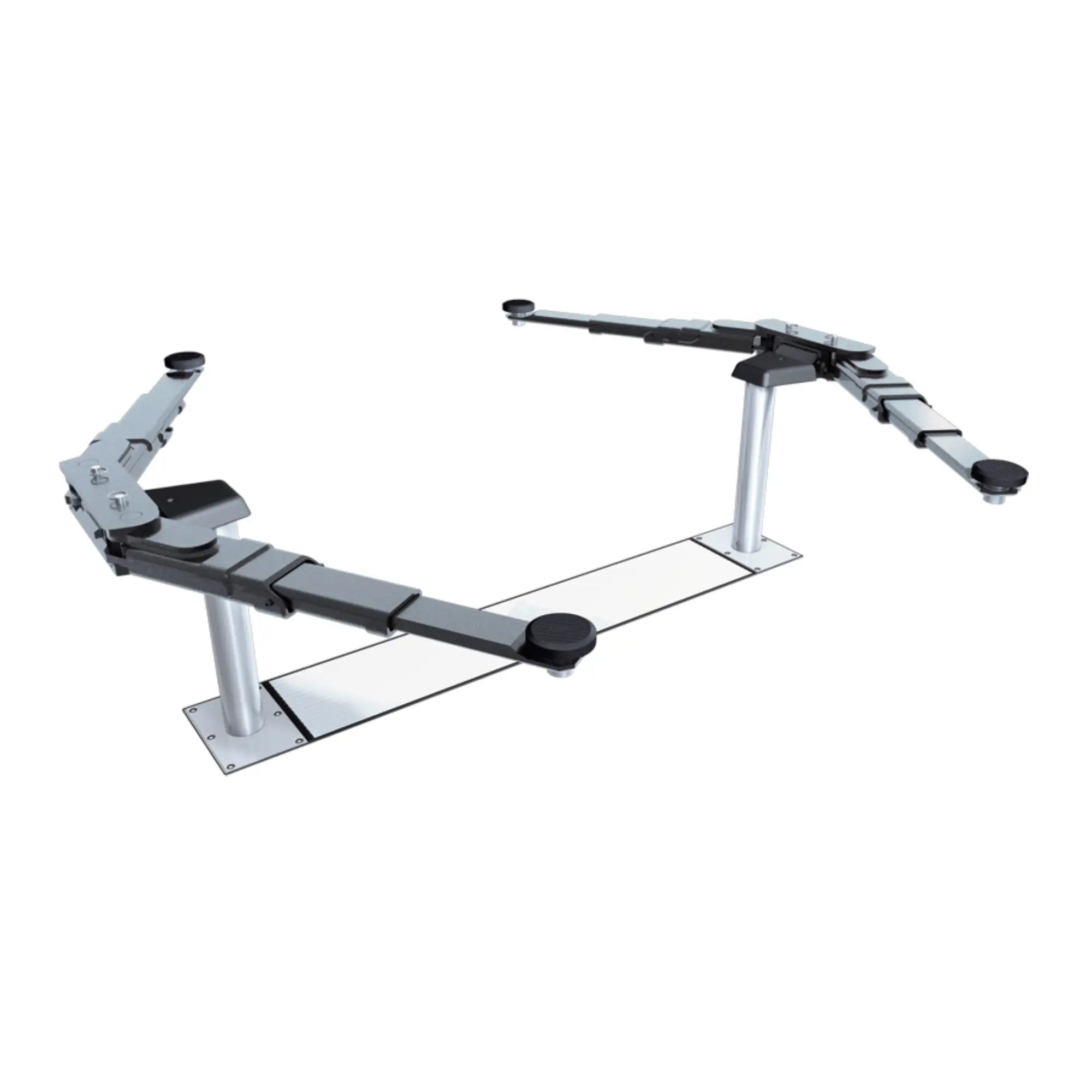

Herrmann Swingarm 2.35 3500kg 2 Piston Lift 2285mm
Product details
- 3500kg lifting capacity
- Offset lifting heads increased drive through clearance

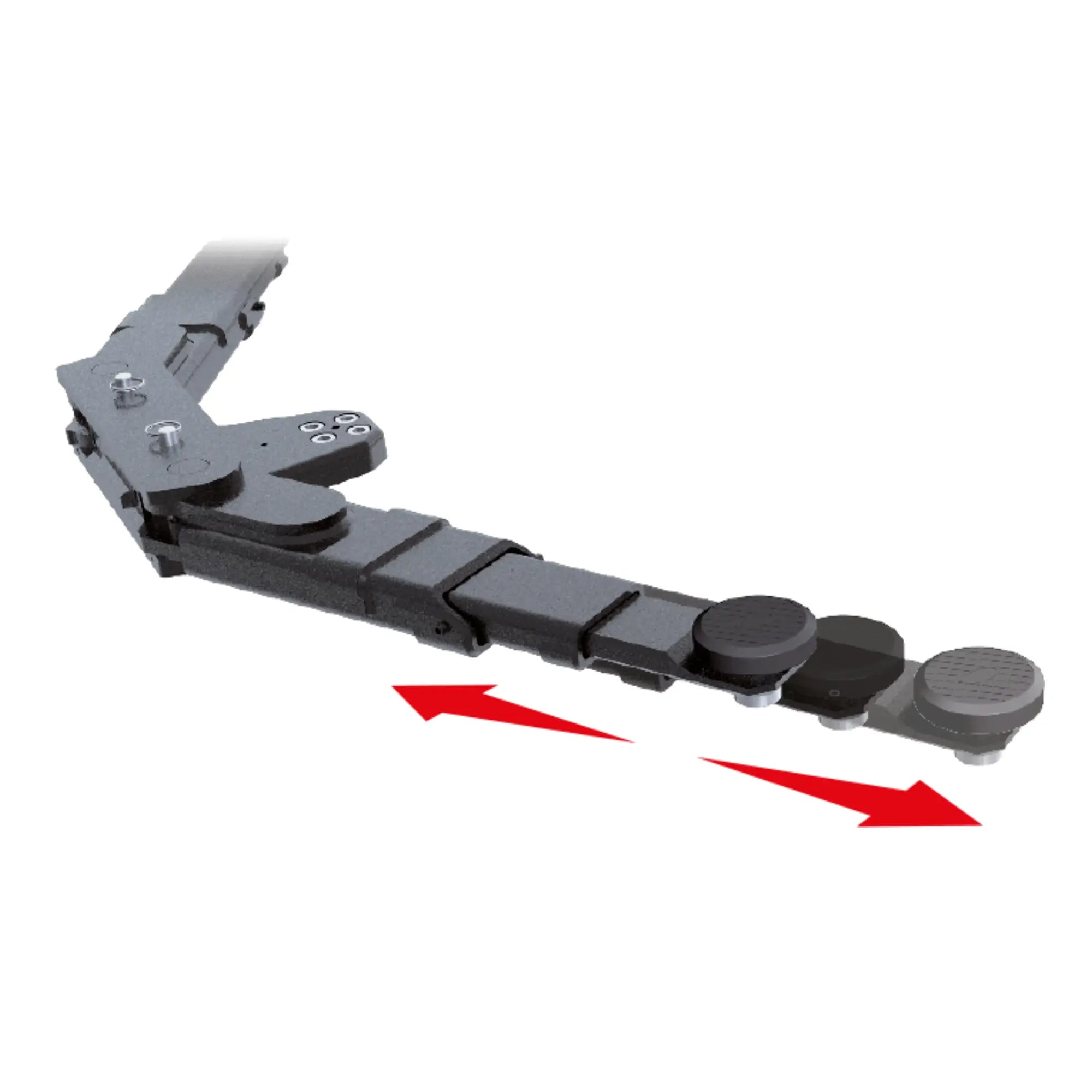

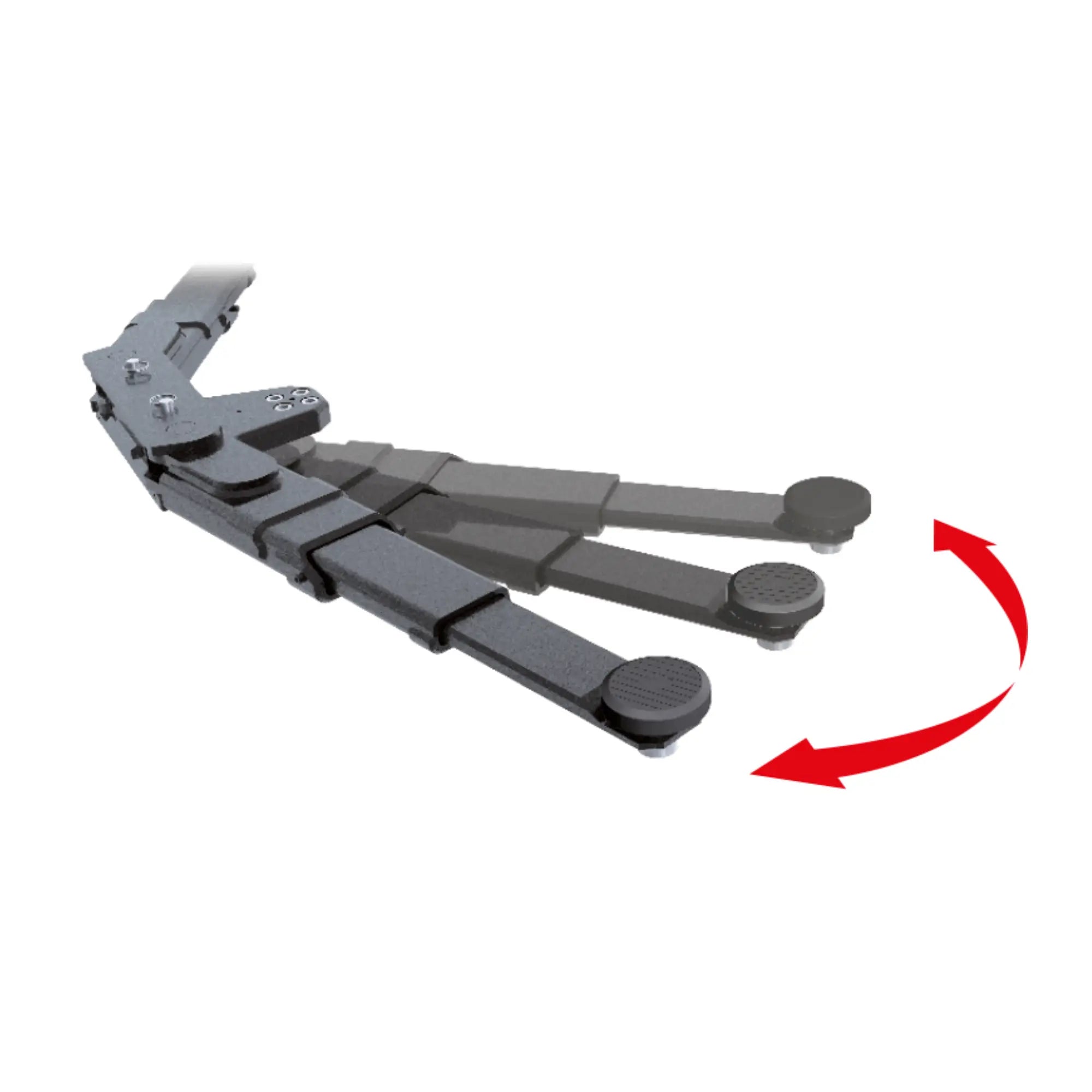

- Super low profile telescopic 3 stage lifting arms
- Wear free synchronisation cross beams (within cassette)
- Audible anti-toe trap protection
- Emergency manual lowering system (no power required)
- Piston distance 2285mm
- Min lifting pad height 90mm
- Minimum clearance 2155mm
- Drive-through clearance 2639mm (driving over 40mm chamfered edged lifting head)
- Lifting height 1926mm
- Piston diameter 123mm
- Lifting / lowering time approx. 35 sec
- Made in Germany.
- Supplied with fully comprehensive 2 year warranty
