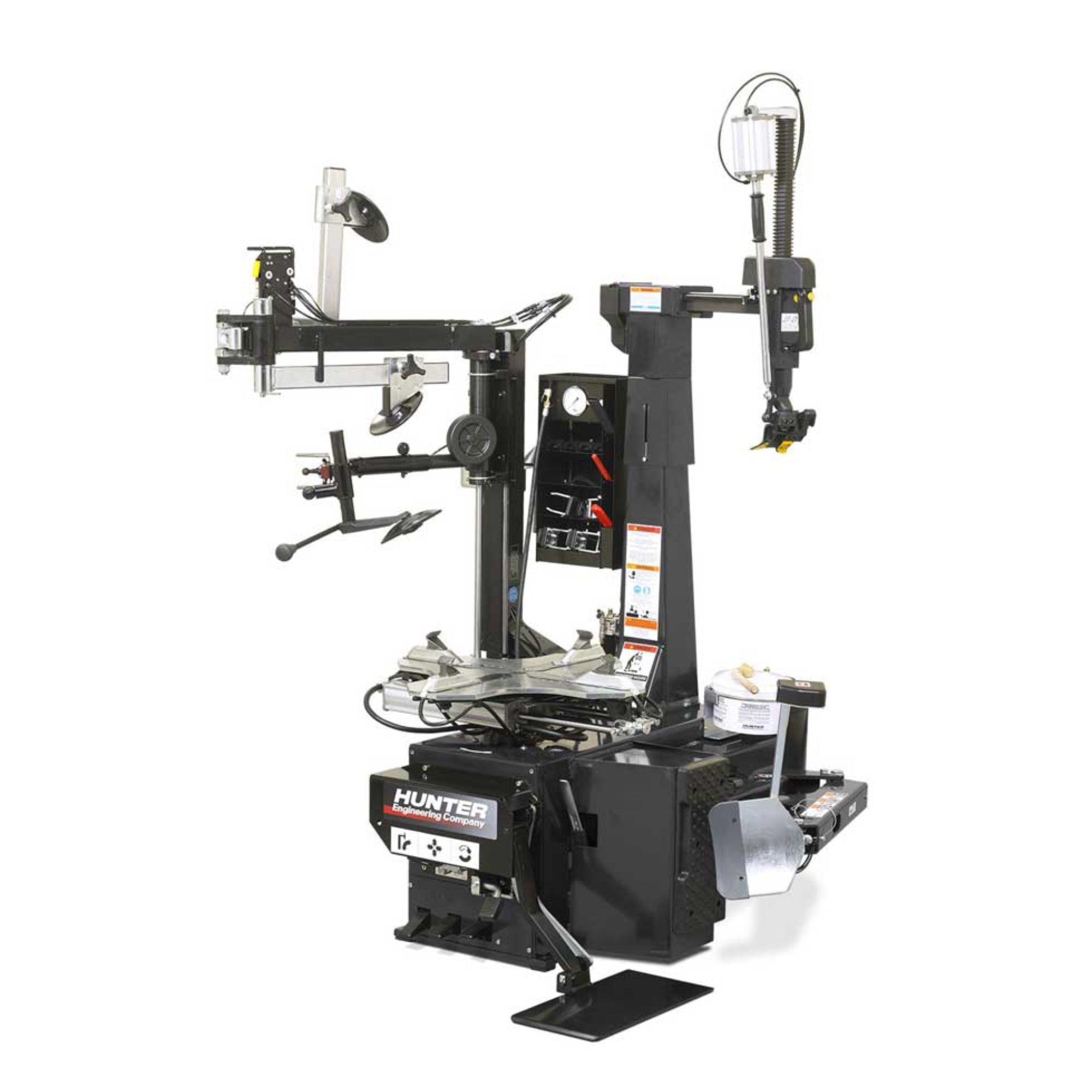

Hunter TCX57 Tyre Changer
The TCX57 from Hunter is the perfect combination of power, speed and capacity. Its heavyweight chassis, Power-Out bead breaking shovel, automatic tool head and adjustable jaws clearly set this tyre changer above the rest. Despite its heavyweight chassis the foot operated automatic swing arm offers a space saving opportunity. Comes with twin speed motor, adjustable clamping range and a left hand bead breaking system for the toughest of assemblies on modern vehicles.

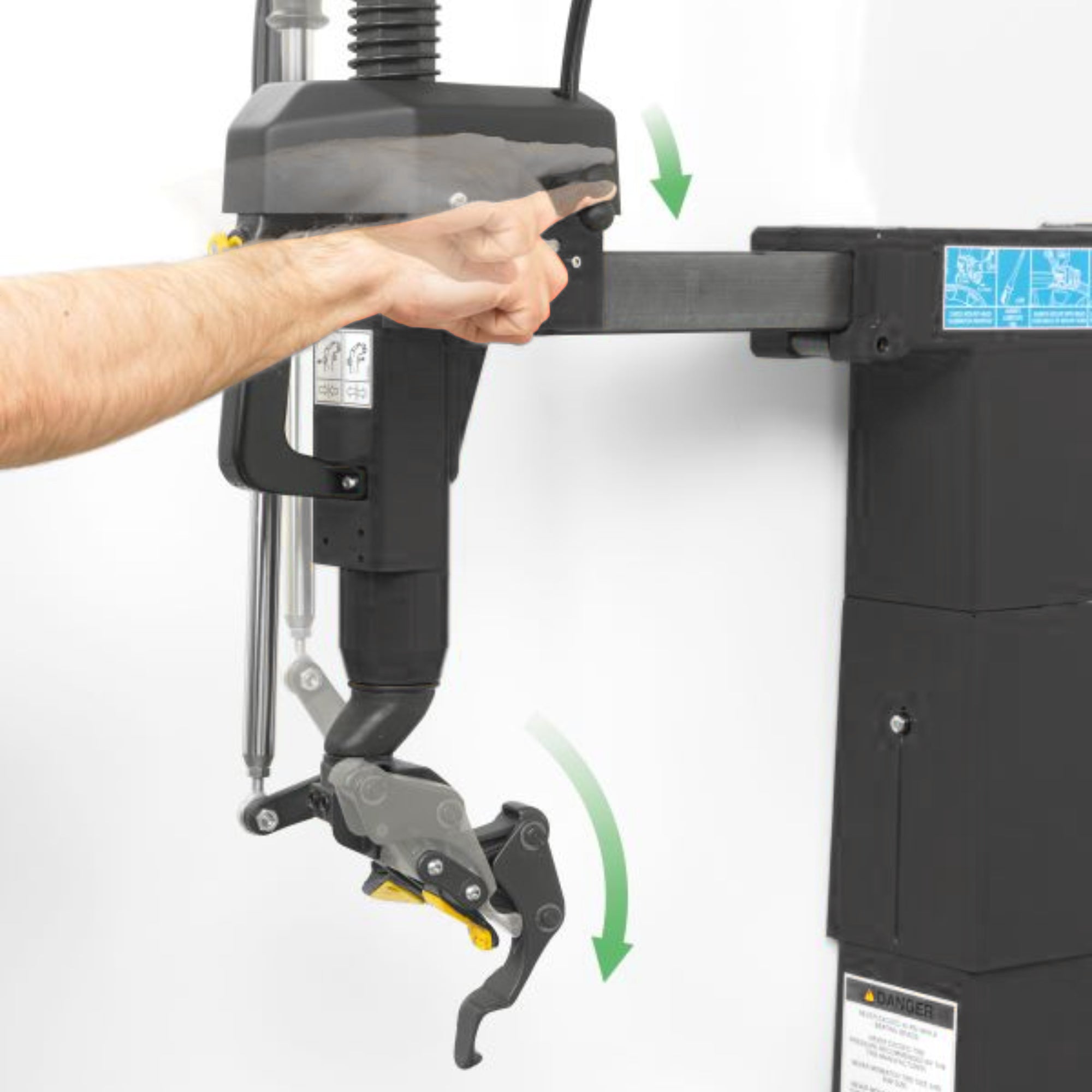

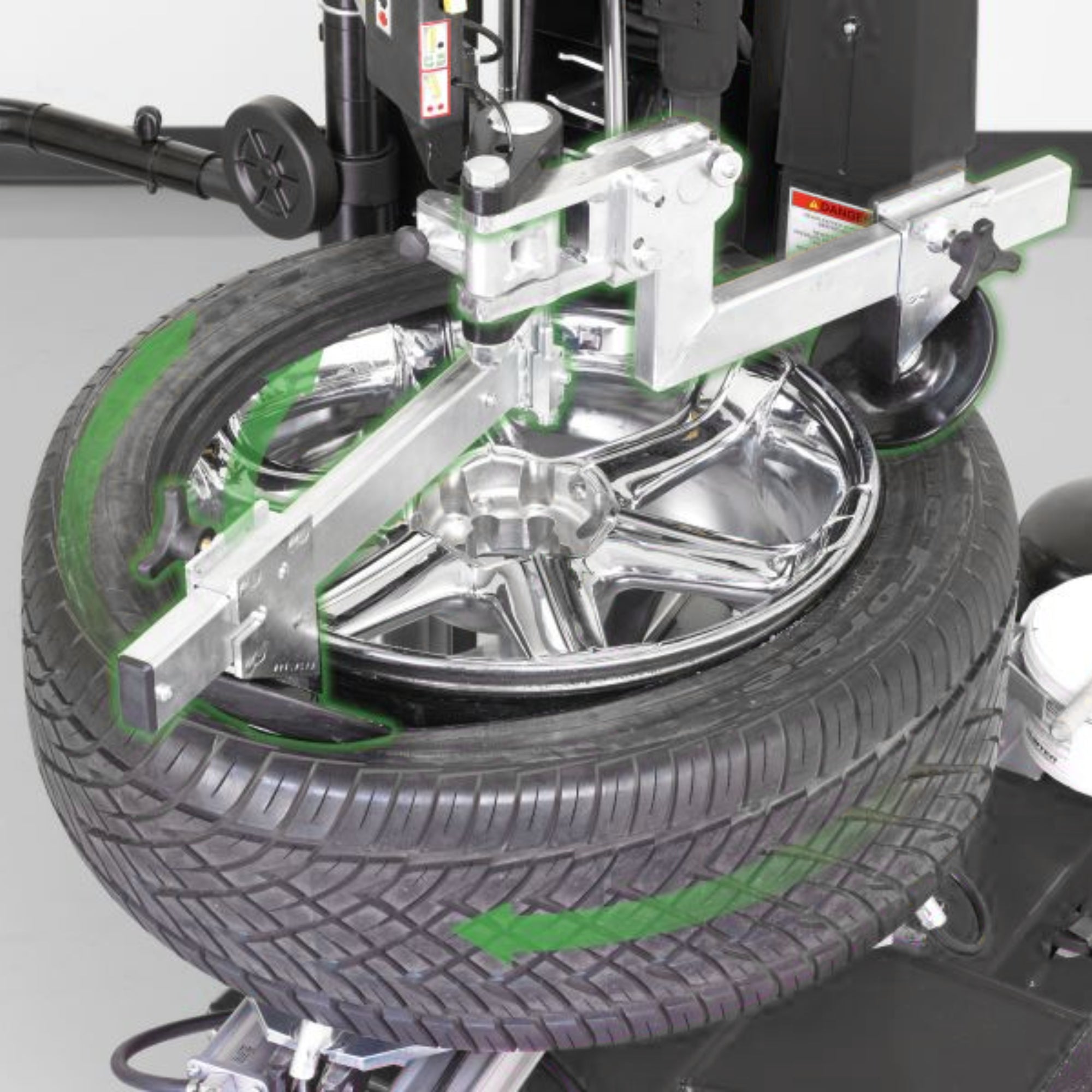

• Leverless tool head
• Automatic Space Saving Swing Arm
• Most pwerful bead press system in the indutry

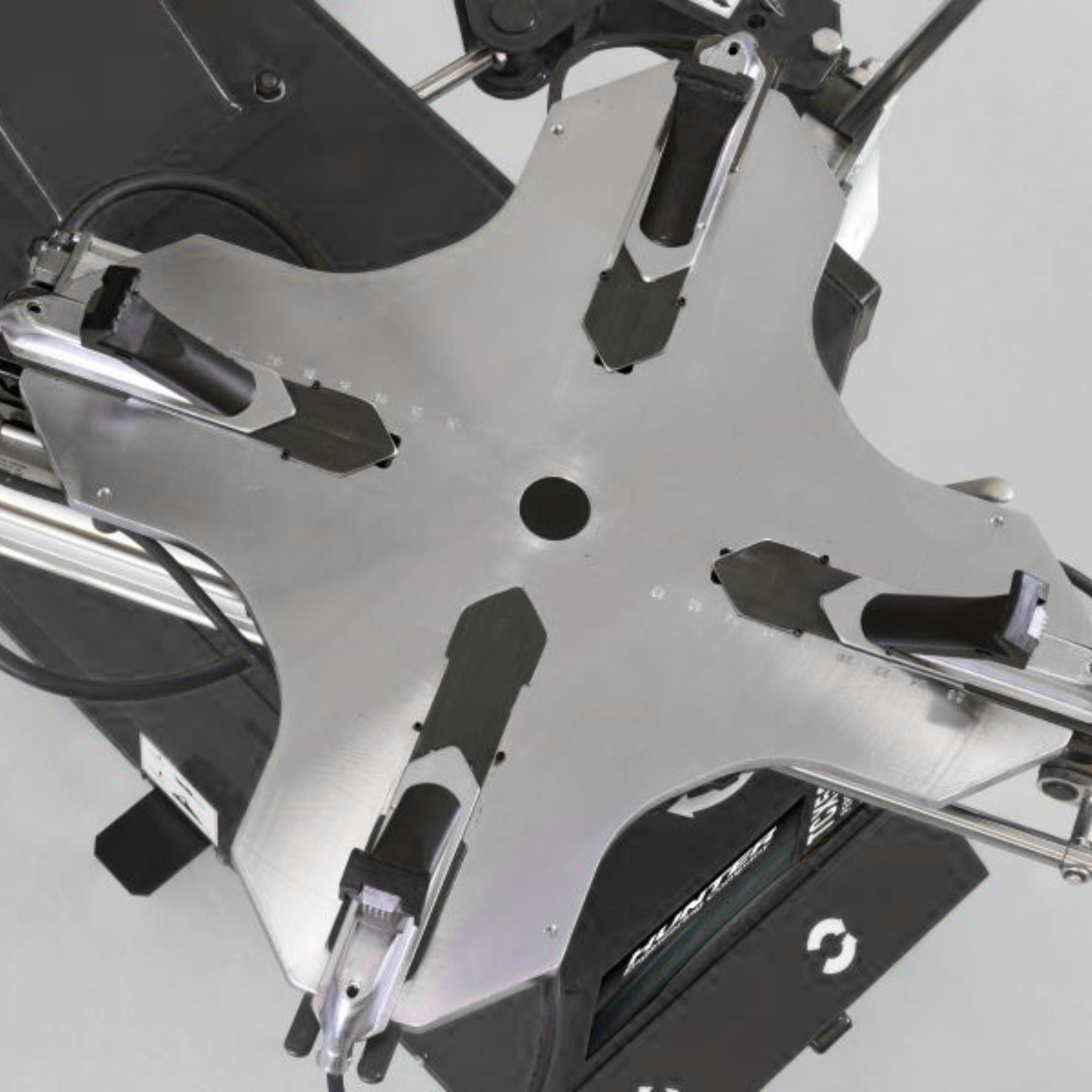

• Twin Cylinder Clamping System
• Fingertip controlled bead loosener
• Easy to Clean Polished Table Top
• Wheel Protection Pack
External Wheel Claming
10" - 26"
Internal Wheel Clamping
12" - 28"
Maximum Tyre Diameter
43.3" (1100mm)
Maximum Wheel Width
14.5"
Drive Speed
Twin Speed - 7 rpm (forward and backwards) / 17 rpm forward
Power Supply
240v
Air Supply
8 - 10 bar (110 - 145 psi)
Height
2082mm
Width
1397mm
Depth
1397mm
