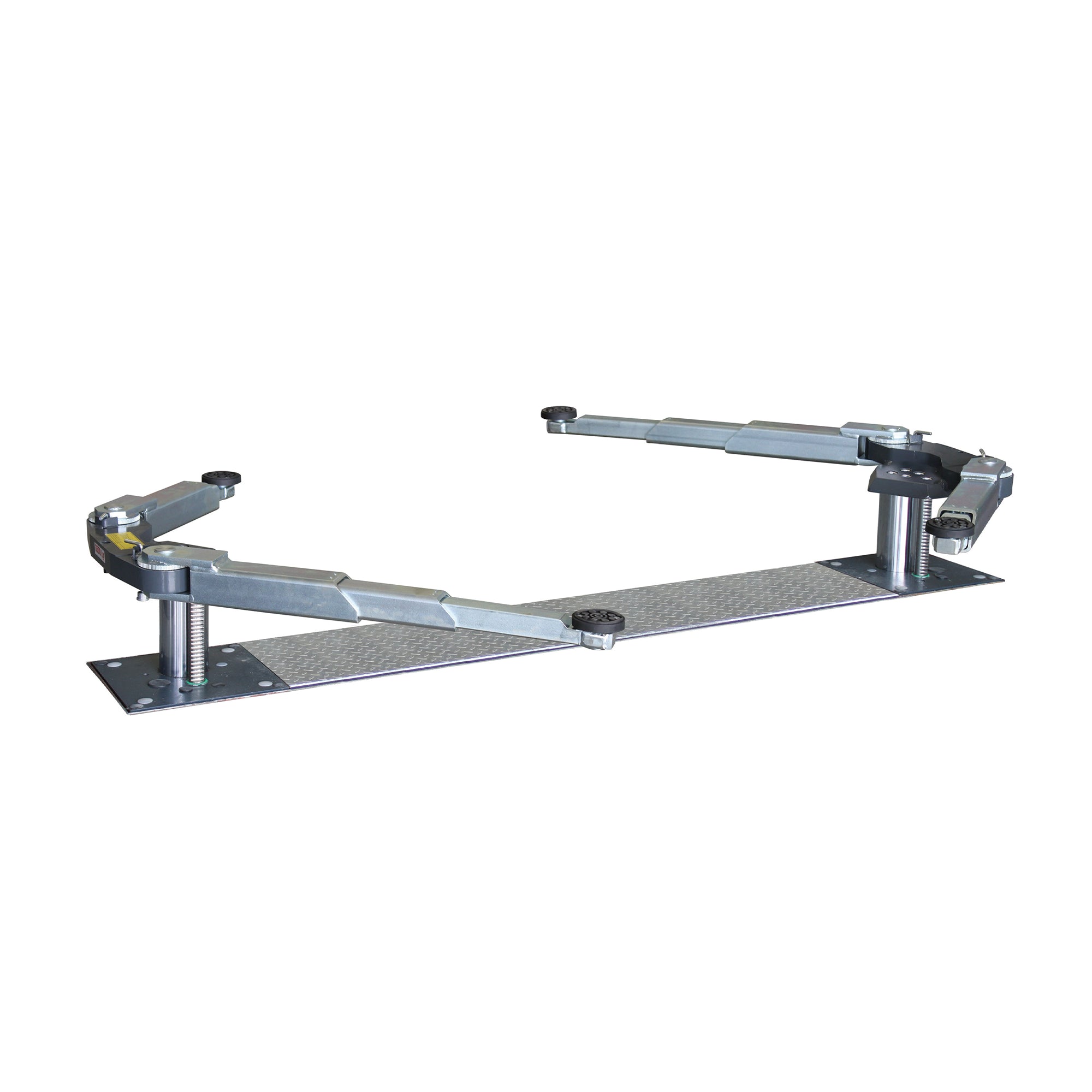

MAHA DV40KX35
The DV40KX35 is a swingarm lift that has a lifting capacity of 3500kg and has swivel arms with double telescopic 3-piece support arms to allow for flexibility of the lift. The DV40KX35 also includes a plug-in system which includes a mounting plate that provides a 50mm elevation to potentially stop damage to the vehicle. The DV40KX35 is made from high quality materials to ensure longevity of the lift, for example the 2 lifting rams are made of micro-alloyed hard chromed steel.
The DV40KX35 has various safety features to prevent accidents within your workshop including, automatic lock arm, safety beep CE stop and emergency lowering device.
- Swivel arms with double telescopic support arms (3-piece)
- Ram axle distance 2,500 mm, lifting ram next to the vehicle
- Extension range: 560 – 1,140 mm
- Automatic arm lock
- Swivel height of the support arms: 77, 89, 101 mm
- Adjustment range of the mounting plate: 75 – 106 mm + 50 mm
- Plug-in system with mounting plate elevation 50 mm
- Safety beep control CE stop
- Swivel arms powder-coated anthracite (RAL 7016)
- Support arm traverse anthracite (RAL 7016)
- 2 lifting rams made of micro-alloyed, hard-chromed steel
- Double internal anti-twist device
- Gear racks made of stainless steel
- emergency lowering device
- Dirt-repellent, elevated rack sleeve
- EC Declaration of Conformity CE
Capacity
3500kg
Effective raise height
1900mm
Installation depth
2320mm
Motor output
3 kW
Power connector
3/N/PE 400 V 50 Hz
Lifting time/lowering time
≈35 sec.
