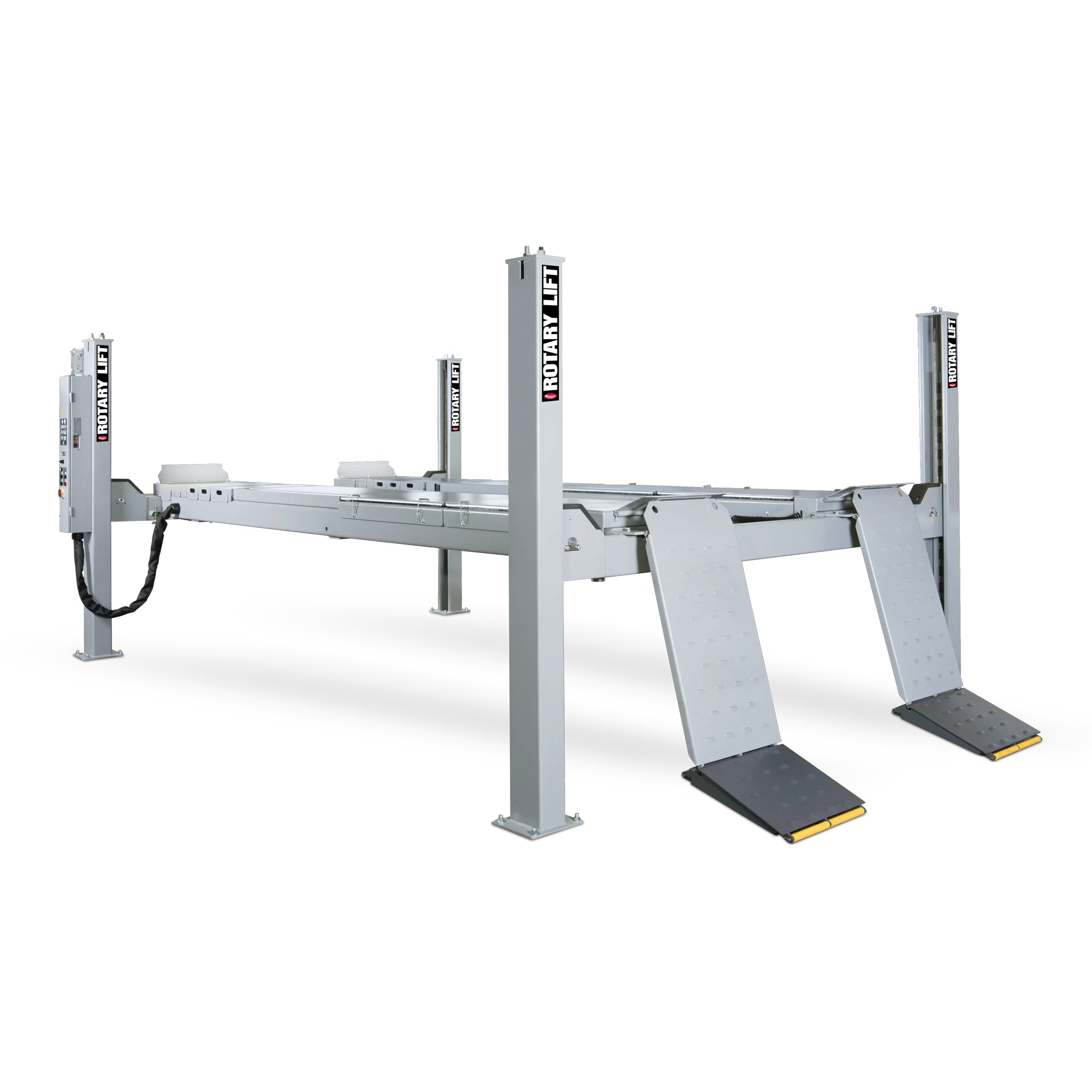

Rotary SM40-51
The SM40-51 is a 4 -Post lift with an electro-hydraulic operation that has a lifting capacity of 4000kg. The SM40-51 has modular construction which facilitates almost unlimited options for upgrading with opportunities to adapt your lift to your suit workshop’s requirements whether you need a Wheel Alignment Lift, MOT Lift, or just a flat platform lift for general servicing requirements.
The SM40-51 4-Post lift has a maximum lifting capacity of 1990mm, a drive-through clearance of 2938mm, and a platform width of 560mm.
This SM40-51 4-Post lift can either be surface mounted or installed within a recess depending on your individual requirements.
- 4000kg lifting capacity.
- 20,000+ cycle tested.
- Electro-hydraulic operation.
- Air operated safety locking mechanisms.
- Automatic steel cable failure protection.
- Fast lifting time of 45 seconds.
- Platform length 5100mm.
- Platform width 560mm.
- Maximum platform track width 2220mm (outside to outside).
- Platform height 167mm (min).
- Drive through clearance 2938mm (between posts).
- Lifting height 1990mm.
- Run on ramps 1395mm long (500mm extension sections available at extra cost).
- Supplied with fully comprehensive 3-year manufacturer backed warranty.
Lifting Capacity
4000kg
Lifting Time
45 seconds
Standard Drive Through Post Clearance
2938mm
