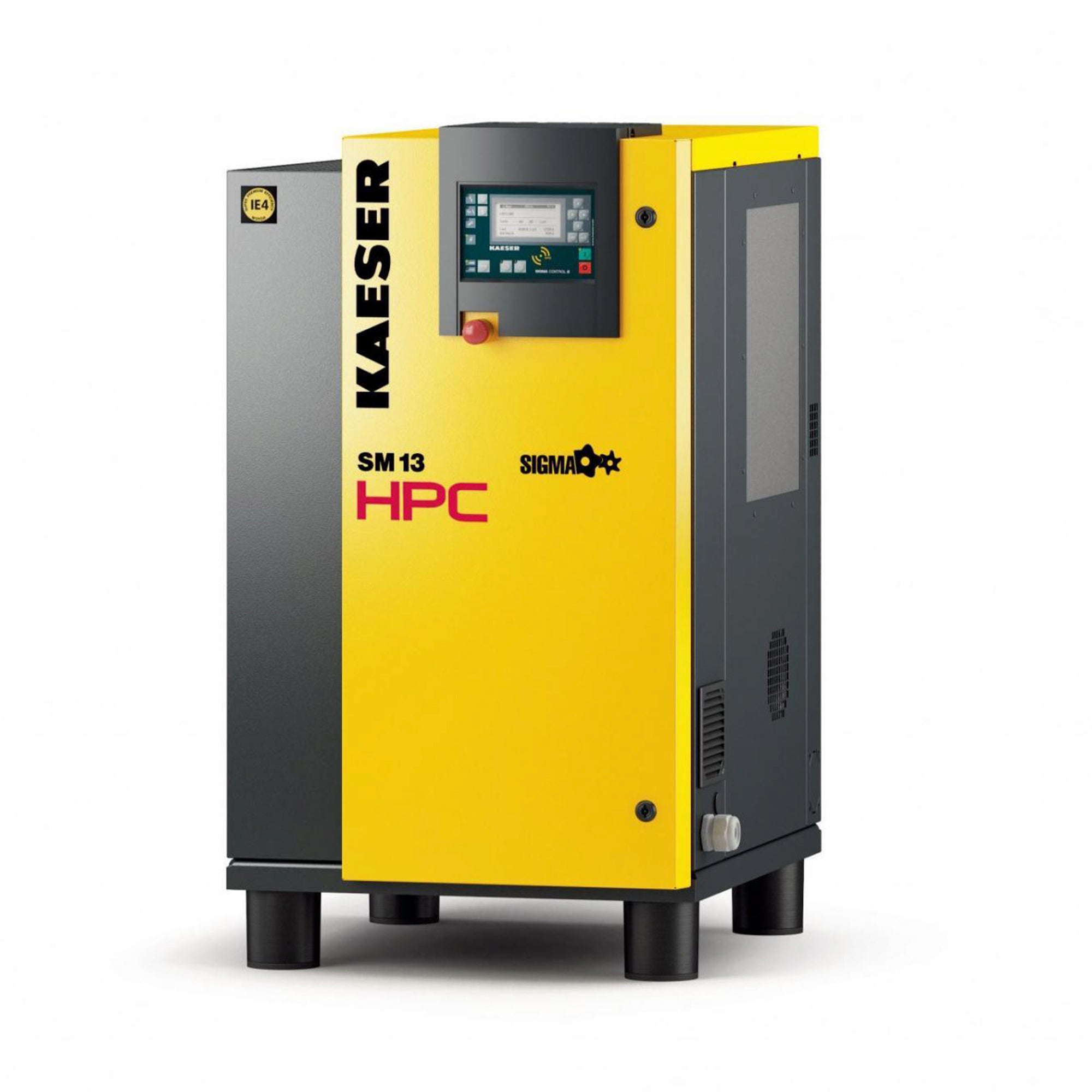

HPC SM13T-P
The HPC SM13T-P is a compressor with an integrated refrigeration dryer. It also features a specially designed airend that has flow-optimised Sigma rotors, these provide less energy consumption as they deliver more compressed air. The design enhances cooling performance whilst minimising sound emissions. This is the perfect addition to your workshop as the design on a whole gives increased compression performance. The unit is also completely service friendly. The easily removable housing cover provides component accessibility and it features a new maintenance-free drive belt, guaranteeing optimum power on top of reducing service costs.
- Made in Germany.
- Supplied with 5 year warranty (Subject to service agreement).
- 10 bar operating pressure.
- 7.5kW – 38.1 cfm (1.08m3 /min).
- Highly energy efficient ‘Sigma’ air end and drive system.
- Super premium efficiency IE4 motor.
- Fully programable onboard controller.
- SC2IO (Sigma Control 2)
- Low oil level monitoring with safety shutdown.
- Housed within a super silencing acoustic enclosure 65dB(A)
- Integrated refrigerant dryer.
- Automatic water drain.
- 440v 3-phase.
- 250L vertical galvanised receiver.
- OW10 – oil water separator unit.
- F16KE inline air filter.
WxDxH
630x1090x1100
Mass
315KG
